The Hyundai iLoad was launched in Australia in 2008 and in three years it became Australia's most popular van, unseating the Toyota Hiace in 2011.
The TQ-V Series Hyundai iLoad presents a sliding door as standard on each side of the vehicle and offers two options for the rear opening. Option 1 is a standard awning-style door that is hinged at the top and lifts upwards to provide shelter and option 2 is a barn door configuration.
Products available for the Hyundai iLoad include insect screening solutions and solar screening solutions.
Insect Screens for Window Openings:
The Flexible Magnetic Insect Screen rolls up for storage in a tube or can be stored flat.
Flexible Magnetic Insect Screening options are available.
If factory fitted windows or after market windows are installed in the side panels of your vehicle Flexible Magnetic Insect Screens can be manufactured to screen the opening. Please email the dimensions to: contact us for a quote.

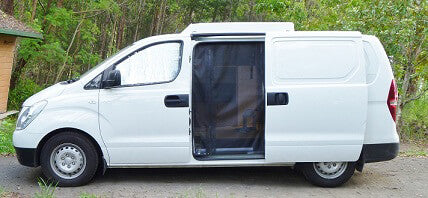

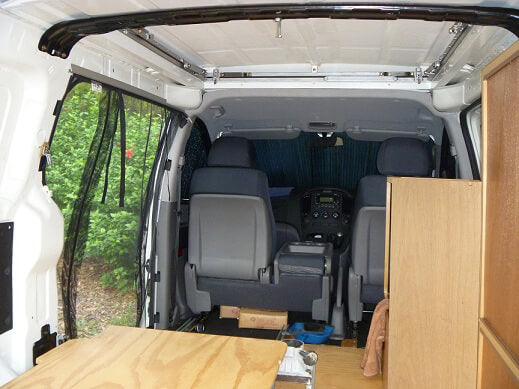

Insect Screen for the Sliding Door Opening
The Hyundai iLoad presents technically challenging door openings for which to provide insect screening protection. Top Gear 2 Go has solved the technical difficulties in providing insect screening protection employing our Flexible Magnetic Insect Screening technology.

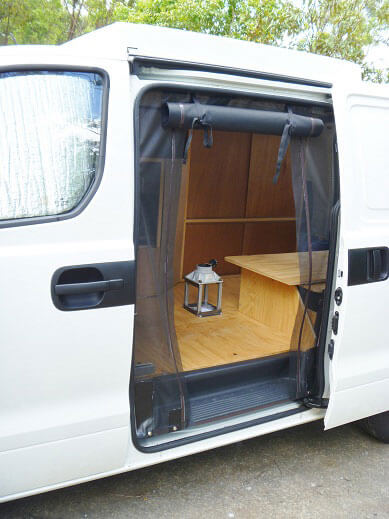

A Flexible Magnetic Insect Screen for the sliding door opening (nominally 111cm wide x 139cm high) is comprised of three overlapping mesh panels secured internally at the head of the door opening in a track. Flexible Magnet provides the seal down each side of the opening and between the overlapping mesh panels. The bottom seal is provided by snap fasteners.
When insects are not an issue the centre panel can be rolled up and secured at the top of the door opening to provided unobstructed access.
Entry into and out of your vehicle is simply a matter of moving through the overlapping mesh panels. The product is robust and provides an effective barrier against insect entry.
The sliding door insect screen can be removed in around 10 to 15 seconds and is just as easy to re install. When the sliding door insect screen is not required it can be easily removed for storage using the optional storage hanger.

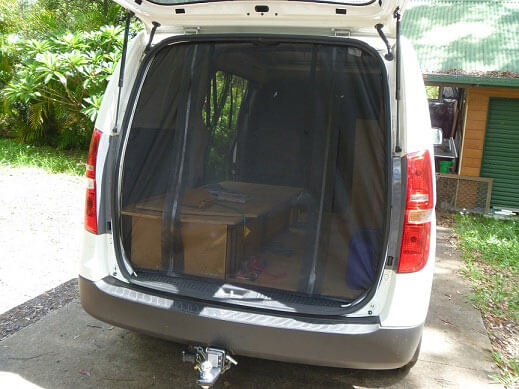

Insect Screen for the Tailgate Opening
Two options are available to screen the rear opening:
Option 1: The Tailgate Insect Screen Assembly is a non magnetic insect screening product that is held in position by an elastic fastening device and provides a 100% seal against insect pest entry via the tailgate opening. The Tailgate Insect Screen Assembly screens an opening nominally 138cm wide x 125cm high. This product is an insect screen only and whilst providing for access to drawers and cabinets via the tailgate does not provide for occupant access or exit except in an emergency.
Option 2: Rear Opening Flexible Magnetic Insect Screen is comprised of three overlapping mesh panels. The centre panel magnetically seals against the outer panels and the vertical and top perimeter seal is provided by a track system. The bottom seal is provided by a combination of flexible magnetic for the base of the centre panel and hook and loop fastener for the base of the outer panels. The ear opening Flexible Magnetic Insect Screen can remain installed permanently and can be removed for cleaning in under 30 seconds. When insects are not an issue the centre panel can be rolled up and secured at the top of the door opening to provided unobstructed access.
Sun Shields for Thermal Protection and Privacy

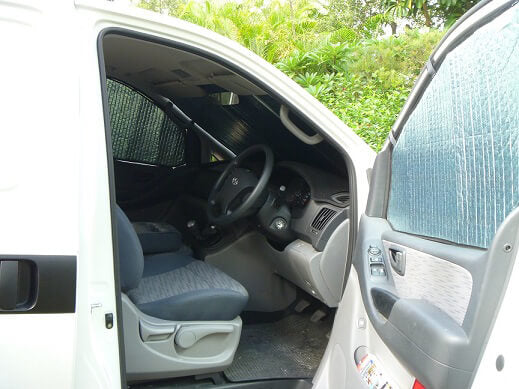

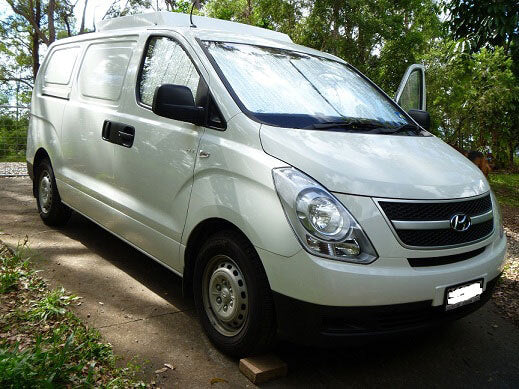

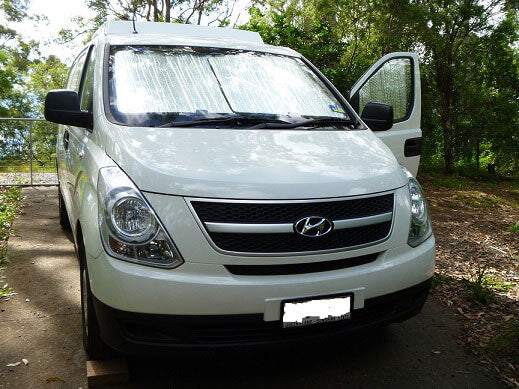

Sun Shields are available for internal installation to the windscreen only, or optionally, as a cabin set (includes the windscreen and also the passenger and drivers door windows).
