Toyota Hiace SBV

Top Gear 2 Go

The Toyota Hiace SBV (Semi-Bonneted Van) was sold in Australia from 1999 to 2005 and was designated RCH22R.

Products available for the Toyota Hiace SBV include insect screening solutions and solar screening solutions.

Insect Screens for Window Openings:

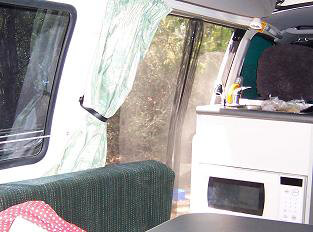

The Flexible Magnetic Insect Screen attaches externally to the ferrous metal body panels that surrounds the window frame. The Flexible Magnetic Insect Screen rolls up for storage in a tube or can be stored flat under the mattress.

Flexible Magnetic Insect Screens are available for the following window openings:

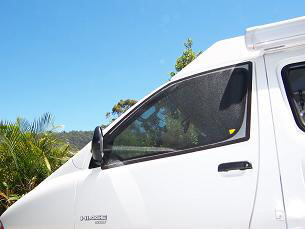

1. Passenger Door Window Opening. Cannot be installed if a weathershield is fitted to the passenger door window opening.
2. Drivers Door Window Opening. A mirror reverse of the passenger door insect screen. Cannot be installed if a weathershield is fitted to the drivers door.

Insect Screen for the Sliding Door Opening:

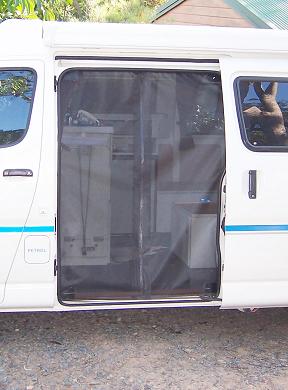

A Flexible Magnetic Insect Screen for the Sliding Door Opening (nominally 105cm wide x 141cm high) is comprised of two overlapping mesh panels secured internally at the head of the door opening in a track. Flexible magnet provides the seal down each side of the opening and between the overlapping mesh panels. The bottom seal is also provided by a flexible magnetic fastener.

Entry into and exit out of your vehicle is simply a matter of moving through the overlapping mesh panels. The product is robust and provides an effective barrier against insect entry.

When insects are not an issue one half of the insect screen can be slid out of the track and folded back against itself to open up one half of the door opening. The Sliding Door Opening Insect Screen can be removed in around 10 to 15 seconds and is just as easy to reinstall. When the sliding door insect screen is not required it can be easily removed for storage using the optional storage hanger.

Insect Screen for the Tailgate Opening:

Two options are available to screen the tailgate opening:

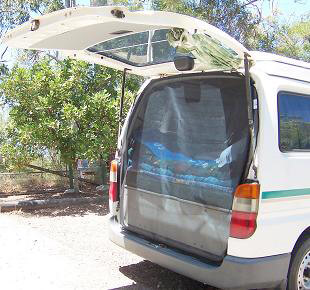

Option 1: The Tailgate Insect Screen Assembly is a non magnetic insect screening product that is held in place by an elastic fastening device and provides a 100% seal against insect pest entry via the tailgate opening nominally 140cm wide x 140cm high. This product is an insect screen only and whilst accomodating access to drawers and cabinets does not provide for occupant access except in an emergency. The Tailgate Insect Screen Assembly is only suitable for use on the SBV with the rear door hinged at the top and is not suitable for those vehicles with the barn doors.

Option 2: The Flexible Magnetic Tailgate Insect Screen is comprised of three overlapping mesh panels that are held in an internally fitted track at the top of the rear opening. A two part flexible magnetic fastener seals the centre panel against the two outer panels for the full depth of the opening. The vertical perimeter seals are provided by a track system. When insects are not an issue the centre panel can be rolled up and tied at the top of the door opening.

Sun Shields for Thermal Protection & Privacy:

Sun Shields are available for internal installation to the windscreen only or as a cabin set (for the windscreen and also the passenger and drivers door windows).
