Toyota Coaster - 50 Series

The 50 Series Toyota Coaster present with square cornered window frames (Refer photo image).

Flexible Magnetic Insect Screens for the Window Openings:

Flexible Magnetic Insect Screens are available to screen every window and door opening. For the drivers door window a Flexible Magnetic Insect Screen for external installation magnetically attaches directly to the ferrous metal body panels that make up the drivers side door. This screen must be removed for driving.

Two options are available to screen the large windows of the 50 series Toyota Coaster.

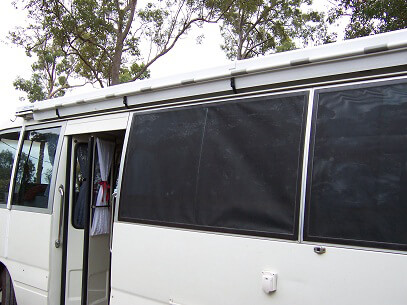

Option 1 is an externally fitted Flexible Magnetic Insect Screen. The externally fitted Flexible Magnetic Insect Screen magnetically attaches to a Part A sub frame component. The Part A sub frame component with an adhesive back is permanently attached to the external alloy window frame of the vehicle.

The Flexible Magnetic Insect Screen and Part A sub frame components are made to a size to screen a window 138.5cm wide x 75cm deep. Externally fitted screens must be removed for driving.

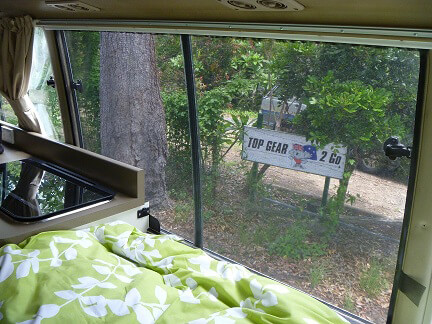

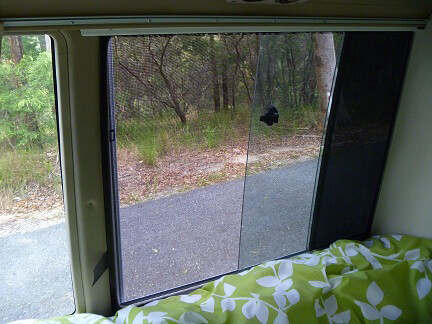

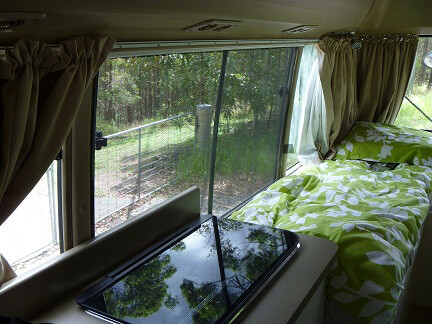

Option 2 is an internally fitted Flexible Magnetic Insect Screen. The internally fitted Flexible Magnetic Insect Screen is supported at the top of the window in a track and the vertical and base perimeter seal is provided by a two part flexible magnetic fastener.  A Part A sub frame component with an adhesive back is permanently attached to the internal perimeter surrounding the window. If cabinets and bench tops intrude into the window area the insect screen is custom made to suit the configuration of the opening.

Insect Screens for door openings:

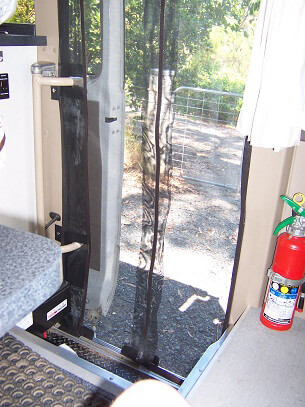

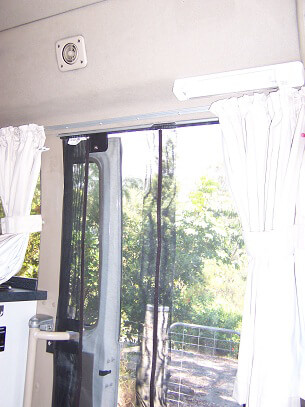

Plug Door Insect Screen.

The Flexible Magnetic Insect Screen for the Toyota Coaster Plug Door Opening (72.5cm wide x 175.5cm high) is comprised of three overlapping mesh panels secured internally at the head of the door opening in a flush fitting track.

Flexible Magnet provides the seal down each side and between the overlapping mesh panels. The bottom seal is provided by a combination of flexible magnet and hook and loop fastener.

Entry into and out of the vehicle is simply a matter of moving through the insect screen panels. The screen will return to its closed and sealed position after you have moved through the overlapping mesh panels.

The Flexible Magnetic Insect Screen for the Plug Door is installed inside the vehicle and can be left in place without interfering with the manual operation of the door.

If you need to totally remove the Flexible Magnetic Insect Screen for cleaning or storage it is easy to do and will take less than 20 seconds.

The remote electric swing arm does need to be disconnected but most plug door Coaster owners have done this already.

The Plug Door insect screen is available in kit form and is very simple to install - all the fixtures and fittings are supplied or we can install the insect screen for you at our premises on the Gold Coast for a small installation cost.

For further details on the Plug Door Insect Screen go to PRODUCTS > INSECT SCREENING SOLUTIONS FOR VEHICLES > PLUG DOOR INSECT SCREENS

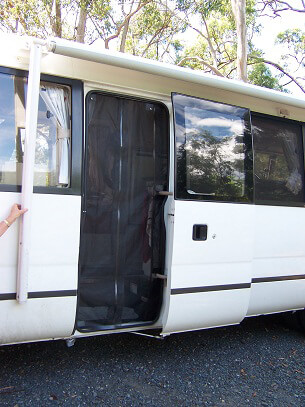

Concertina Door Insect Screen.

A Flexible Magnetic Insect Screen for external installation on the concertina door opening is comprised of two overlapping mesh panels fixed at the head in a track. The overlapping panels are sealed the full length by a two part magnetic fastener. The perimeter seal is provided by flexible magnet for the full length of each side. The bottom seal is provided by flexible magnet.

The Flexible Magnetic Insect Screen for the Concertina door opening must be removed for driving and can be loosely rolled up for storage.

Rear Exit Insect Screen.

A Flexible Magnetic insect Screen for the Rear Opening Door is made for internal installation. The insect screen is available for the full depth of the door opening or can be made to seal off at the level of the bed base.

Wheelchair Access Openings.

Custom made Flexible Magnetic Insect Screens can be made to screen any aftermarket door openings.

Sun Shields for Thermal Protection and Privacy.

Sun Shields are available for internal installation to the windsreen only or as a cabin set (for the windscreen and also the passenger and drivers door windows).

Sun Shields can also be made for the rear window or any other window in the Coaster.
