Ford Transit VF - VG Series (May 1996 to Oct. 2000)

The Ford Transit VF series was released in May 1996 and ran through to December 1996. The Ford Transit VG Series ran from January 1997 through to October 2000. High roof and mid roof versions were available.

The high roof version has proven most popular for motorhome conversion and we have fitted out a large number of medium and low roof vehicles that are used as trade vehicles through the week and campervans on weekends.

Products available for the Ford Transit VF and VG Series include a number of insect screening solutions and also solar screening solutions.

Insect Screens for Window Openings:

The Flexible Magnetic Insect Screen attaches externally to the ferrous metal body panels that surround the window frames. Internally fitted screens are available for some windows.

The Flexible Magnetic Insect Screen rolls up for storage in a tube or can be stored flat.

Flexible Magnetic Insect Screening products are available for the following windows:

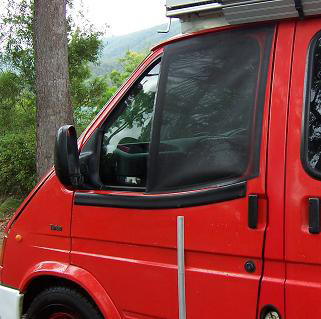

1. Passenger Door Window Opening for EXTERNAL Installation where weather shields are not installed.
2. Passenger Door Window Opening for INTERNAL installation where weather shields are installed.
3. Drivers Door Window Opening for EXTERNAL installation where weather shields are not installed.
4. Drivers Door Window Opening for INTERNAL installation where weather shields are installed.
5. Sliding window opening 572cm wide x 464cm deep for External installation.
6. Sliding window opening 390cm wide x 490cm deep for External installation.

If aftermarket windows are installed in your Ford Transit then Flexible Magnetic Insect Screens can be manufactured to suit. Please email the dimensions to us for a quote.

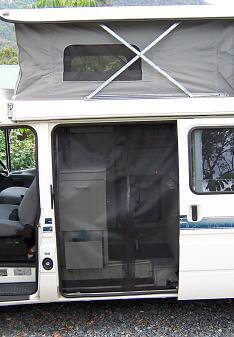

Insect Screen for Sliding Door Opening:

The sliding door opening is nominally 134cm wide x 162cm high.

A Flexible Magnetic Insect Screen for the Sliding Door Opening is comprised of overlapping mesh panels secured internally at the head of the door opening in a track. Flexible magnet provides the seal down each side of the opening and between the overlapping mesh panels. The bottom seal is also provided by a flexible magnetic fastener.

Entry into and out of your vehicle is simply a matter of moving through the overlapping mesh panels. The product is robust and provides an effective barrier against insect entry.

The sliding door insect screen can be removed in around 10 to 15 seconds and is just as easy to reinstall. When the sliding door insect screen is not required it can be easily removed for storage using the optional storage hanger.

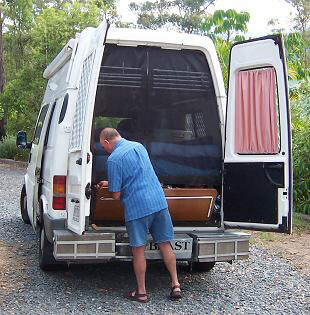

Insect Screen for the Tailgate Opening:

A Flexible Magnetic insect Screen for the Tailgate Opening is available for either the high roof version (tailgate opening nominally 159cm wide x 182cm high) or the mid roof version (tailgate opening nominally 159cm wide x 159cm high).

A Flexible Magnetic Insect Screen for the Tailgate Opening is comprised of overlapping mesh panels secured internally at the head of the door opening in a track. The seal for the right and left vertical perimeters is also provided by a fixed track.

The seal between the overlapping mesh panels is provided by a two part flexible magnetic fastener that runs the full height of the tailgate opening. The bottom seal is provided in part by hook and loop fastener and in part by a flexible magnetic fastener.

The Tailgate Opening Flexible Magnetic Insect Screen can be easily removed and installed by sliding the screens perimeter into the fixed tracking system.

Entry into and out of your vehicle is simply a matter of moving through the overlapping mesh panels. The product is robust and provides an effective barrier against insect entry.

Sun Shields for Thermal Protection and Privacy:

Sun Shields are available for internal installation to the windscreen only, or optionally, as a cabin set (includes the windscreen and also the passenger and drivers door windows).

Sun Shields can also be made for any other window or hatch in your vehicle.
